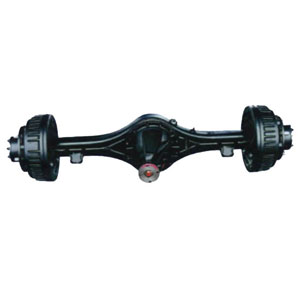

| Product Name | Rear Axle Assembly |
| Product No. | ATRS802-TO001 |
| Suitable | Toyota Coaster |
| Load Capacity (kg) | 3250 |
| Tread | 1490 |
| Distance Between Leaf Springs | 870 |
| Reduction Ratio | 6.143/5.625 |
| Max. Output Torque(N.m) | 7000 |
| Dia of Brake&Width of Brake Pad | φ320×83(Drum Type) |
| Brake Type | Oil Brake |
| Tire Bolt Cycle Dia | φ203.2 |
| REMARKS：There are more than a dozen models which differ from one another in spring cetre,tread, total reduction ratio and break diameter. | |
