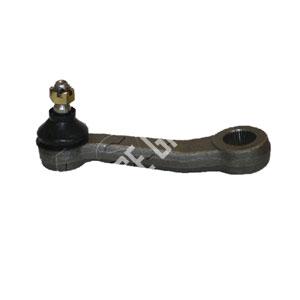

| Pitman Arm For Toyota | ||||
| Product Name | Pitman Arm | |||
| Product No. | ASTS130-TO003 | |||
| Parameter |
Length(mm) |
180 | ||
|
Inner Diameter(mm) |
26 | |||
|
Number of Teeth |
42 | |||
|
Overall Height(mm) |
72.5 | |||
|
Fitted Diameter(mm) |
13 | |||
|
Out Thread (mm) |
12*1.25 | |||
| ASHIKA No. | OEM No. | Model | Year | |
| 52-02-202 |
45401-19066 45401-19125 45401-19135 |
TOYOTA CORONA (RX, RT) 1.8 (TT1) | 06-1979 / 01-1981 | |
| TOYOTA CELICA (TA2) 2.0 | 06-1979 / 07-1981 | |||
| TOYOTA CORONA (RX, RT) 2.0 Mark II (RX12) | 10-1975 / 03-1978 | |||
| TOYOTA CORONA 2 volumi /Coda spiovente (TT) 1.8 | 10-1975 / 07-1977 | |||
| TOYOTA CARINA (TA1_) 1.6 | 12-1975 / 10-1977 | |||
