Marine Boiler >> Oil Fired Boiler >> Steam Boiler >> Vertical TypeMFB-LSK Pin-Tube Boiler (0.5 - 30 t/h)
 |
 | |||
|
Product Name |
MFB-LSK Pin-Tube Boiler | |||
|
Type |
Vertical | |||
|
Technical Data | ||||

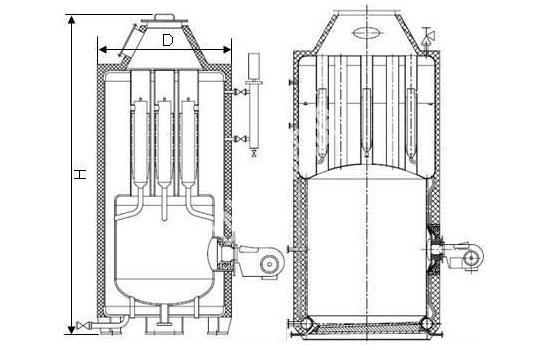

| Product No. | Steam Capacity | Working Pressure | Dimensions | |
| H | D | |||
| T/h | Mpa | mm | mm | |
| MBOI111-VP001 | 0.5 | 0.7 | 3340 | 1150 |
| MBOI111-VP002 | 0.7 | 0.7 | 3370 | 1250 |
| MBOI111-VP003 | 1.0 | 0.7 | 3770 | 1500 |
| MBOI111-VP004 | 1.2 | 0.7 | 3840 | 1550 |
| MBOI111-VP005 | 1.5 | 0.7 | 4060 | 1600 |
| MBOI111-VP006 | 2.0 | 0.7 | 4150 | 1700 |
| MBOI111-VP007 | 2.5 | 0.7 | 4290 | 1800 |
| MBOI111-VP008 | 3.0 | 0.7 | 4470 | 1900 |
| MBOI111-VP009 | 4.0 | 0.7 | 4830 | 2200 |
| MBOI111-VP010 | 4.5 | 0.7 | 4980 | 2400 |
| Membrane Wall Furnace | ||||
| MBOI111-VP011 | 5.0 | 1.6 | 5370 | 2100 |
| MBOI111-VP012 | 6.0 | 1.6 | 5570 | 2200 |
| MBOI111-VP013 | 8.0 | 1.6 | 5990 | 2300 |
| MBOI111-VP014 | 10.0 | 1.6 | 6400 | 2500 |
| MBOI111-VP015 | 12.0 | 1.6 | 6950 | 2600 |
| MBOI111-VP016 | 14.0 | 1.6 | 7290 | 2700 |
| MBOI111-VP017 | 15.0 | 1.6 | 7410 | 2800 |
| MBOI111-VP018 | 16.0 | 1.6 | 7520 | 2900 |
| MBOI111-VP019 | 20.0 | 1.6 | 8100 | 3100 |
| MBOI111-VP020 | 25.0 | 1.6 | 8670 | 3270 |
| MBOI111-VP021 | 30.0 | 1.6 | 9150 | 3580 |
|
Certificate | ||||
|
CCS, GL, NK, ABS, BV, KR, RINA, DNV,LR etc. | ||||
|
Design Features | ||||
|
路 Cylindrical and compact design, 100% by welding | ||||
|
路 Fully water-cooled or membrane wall furnace | ||||
|
路 Pin tube elements | ||||
|
路 Standard pre-assembled unit | ||||
|
路 High efficiency | ||||
|
路 Easy access for cleaning and maintenance | ||||
|
Description | ||||
|
The MFB-LSK is a vertical type oil-fired boiler, producing saturated steam applicable for heating of heavy fuel oil, jacket cooling water, oil tanks, domestic water, air conditioning,etc. | ||||
|
Note | ||||
|
Above design data are only for reference and subject to change without prior notice. The parameters such as the working pressure, dimensions and orientation of boiler can be redesigned according to requests. | ||||
