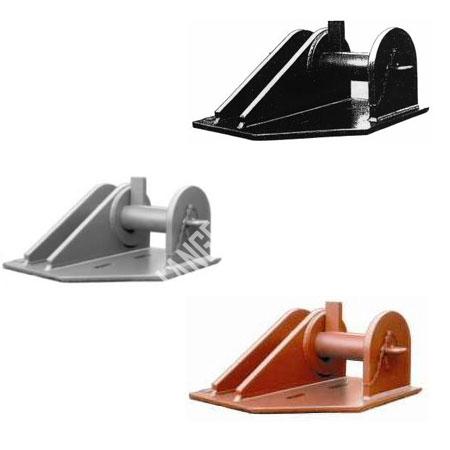

Smit Bracket >> Smit Bracket >> Smit Bracket
  |
||||||||||||
| Smit Bracket | ||||||||||||
| Product No. |
Nominal Dia. (mm) |

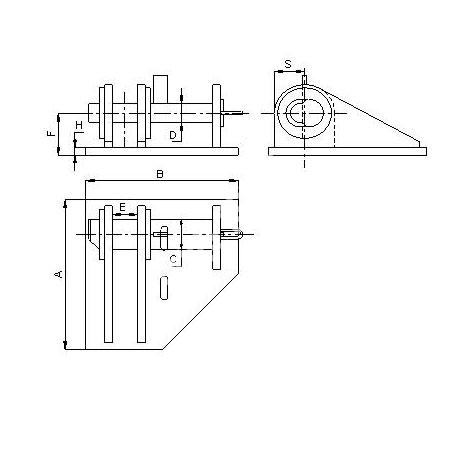

Dimensions(mm) |
Mass (kgs) |
SWL (KN) |
MBL (KN) | |||||||
| A | B | C | D | E | F | H | S | |||||
| MOME106-SB001 | 54 | 720 | 650 | 115 | 75 | 100 | 205 | 30 | 118 | 195 | 1000 | 2000 |
| MOME106-SB002 | 76 | 900 | 800 | 160 | 110 | 150 | 240 | 30 | 170 | 390 | 2000 | 4000 |
| MOME106-SB003 | 84 | 1018 | 905 | 170 | 120 | 160 | 273 | 35 | 210 | 560 | 2500 | 5000 |
| MOME106-SB004 | 95 | 1120 | 940 | 195 | 135 | 170 | 290 | 40 | 276 | 760 | 3000 | 6570 |
