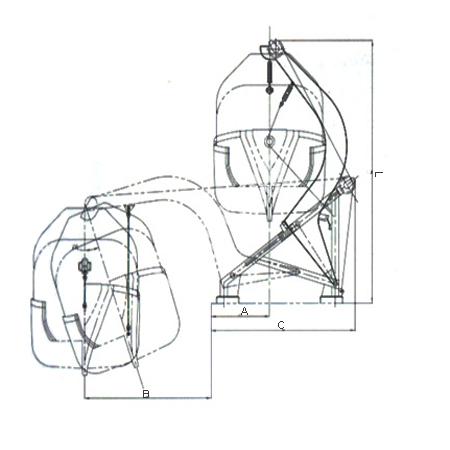

| Gravity Roller Track Davit | ||||||
| Product No. | S.W.L (KN) |
Main Dimensions(mm) | Winch Load(KN) | |||
| A | B | C | L | |||
| MDEE050-RT001 | 50 | 1150 | 2200 | 2800 | 4600 | 48 |
| MDEE050-RT002 | 60 | 1250 | 2400 | 3000 | 4950 | 63 |
| MDEE050-RT003 | 80 | 1525 | 2540 | 3500 | 5250 | 63 |
| MDEE050-RT004 | 105 | 1620 | 2890 | 4110 | 6170 | 80 |
