DECK MOUNTED BALANCED HEAD FAIRLEADS

Product No.

Max
Wire
Size
(inch)

Wire
Breaking
Strength
(lbs)

Sheave
Tread
Dia
(inch)

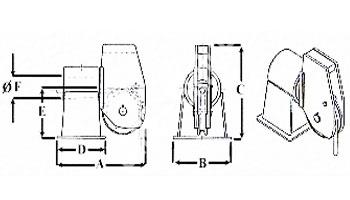

Measurements
(inch)

Weight
(lbs)

A

B

C

D

E

F

MOME102-DM001

3/4

58,800

8 1/4

23 11/16

16

20 1/8

14 3/4

11

4 1/2

270

MOME102-DM002

1

103,400

9 3/4

28 3/16

19 1/4

24 5/8

17 3/4

13 1/2

5 5/8

495

MOME102-DM003

1 1/4

159,800

11 1/4

30 9/16

20

28 1/8

18 1/2

15 1/2

6 5/16

670

MOME102-DM004

1 1/2

228,000

14 1/4

38 1/8

25 1/4

36 1/4

21

19 1/2

8 1/2

1450

MOME102-DM005

1 3/4

266,000

18 1/2

45 1/8

28 1/2

45 1/2

22

23 1/2

9 1/2

2100

MOME102-DM006

2

344,000

20

50 1/8

30

44 15/16

27

25 1/2

12

2650

MOME102-DM007

2 1/4

494,000

24 7/8

56 7/8

40 1/4

60 3/4

27 1/2

31 1/2

13

4800

MOME102-DM008

2 1/2

524,000

30

63

40

70 1/4

27 1/2

36 1/4

14 1/2

6000

MOME102-DM009

3

818,000

44

103 1/2

52 3/8

104

44

34 1/2

26 1/2

16500

MOME102-DM010

3

818,000

55 1/2

115 5/8

52 3/8

117 1/2

44

34 1/2

26 1/2

18800
