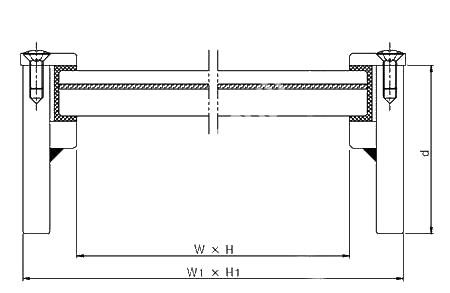

| Welded Heated Window | ||||||||
| Product No. | Type | Nominal Size(mm) | Frame(mm) | Glass Thickness(mm) | Weight(kg) | |||
| W*H | W1*H1 | d | WH | WN | WH | WN | ||
| MOUE020-HW024 | Welded | 800*630 | 848*678 | 75 | 12 | 15 | 41.3 | 41.8 |
| MOUE020-HW025 | 800*710 | 848*758 | 75 | 12 | 15 | 44.2 | 44.8 | |
| MOUE020-HW026 | 900*630 | 948*678 | 90 | 12 | 17 | 45.1 | 46.9 | |
| MOUE020-HW027 | 900*710 | 948*758 | 90 | 12 | 17 | 48.5 | 50.5 | |
| MOUE020-HW028 | 900*800 | 948*848 | 100 | 12 | 17 | 52.4 | 54.6 | |
| MOUE020-HW029 | 1200*630 | 1248*678 | 100 | 15 | 20 | 60.9 | 63.3 | |
