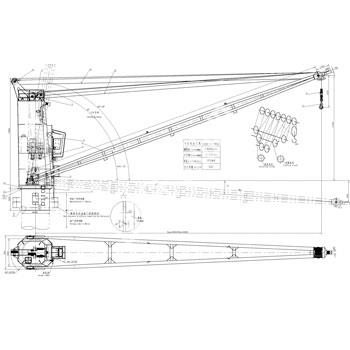

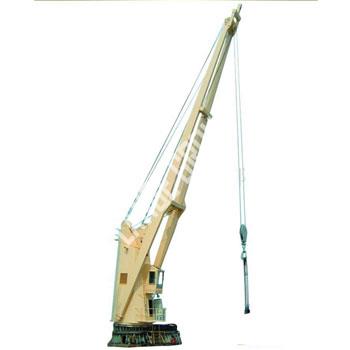

General cargo Crane | ||||||
|
Type |
SWL(T) |
working radius(m) |
Lifting speed (m/min) |
Luffing time(s) |
Rotating velocity (r/min) |
Power(KW) |
|
MDEE040-GC001 |
25 |
20 |
20 |
60 |
0.65 |
180 |
|
MDEE040-GC002 |
25 |
25 |
20 |
60 |
0.65 |
180 |
|
MDEE040-GC003 |
25 |
30 |
20 |
60 |
0.65 |
180 |
|
MDEE040-GC004 |
30 |
20 |
19 |
70 |
0.65 |
220 |
|
MDEE040-GC005 |
30 |
25 |
19 |
70 |
0.65 |
220 |
|
MDEE040-GC006 |
30 |
30 |
19 |
70 |
0.65 |
220 |
|
MDEE040-GC007 |
35 |
20 |
18 |
80 |
0.55 |
250 |
|
MDEE040-GC008 |
35 |
25 |
18 |
80 |
0.55 |
250 |
|
MDEE040-GC009 |
35 |
30 |
18 |
80 |
0.55 |
250 |
|
MDEE040-GC010 |
40 |
20 |
16 |
90 |
0.45 |
250 |
|
MDEE040-GC011 |
40 |
25 |
16 |
90 |
0.45 |
250 |
|
MDEE040-GC012 |
40 |
30 |
16 |
90 |
0.45 |
250 |
|
Basic design features The design is stiff and rigid, with reduced flexibility, giving the operator a faster and more accurate positioning of the cargo Self contained unit with integrated hydraulic power pack Fail-safe brakes on all movements Fully enclosed and equipped drivers cabin with integrated heating Dual pump system with separate hydraulic circuit for hoist and luffing/slewing to ensure efficient cargo handling The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load. Standard equipment Complete Crane with necessary equipment according to requirements from specified Classification Society and Flag State to ensure safe operation Pedestal of standard height ready for mounting and welding to vessel's main steel structure Electric starter equipment Oil cooler for continuous use Limit switches for automatic stop of hook travel in top and bottom position Full two-component epoxy/acrylic paint system of highest marine standard. Colour according to owner's choice All platforms and ladders are hot dip galvanised Full set of documentation and Operation Manual Hand operated pump for release of brake on winch and slewing gear | ||||||
