Marine Valves >> GB/T Marine Valves >> Reducing Valves >> GB Pressure Reducing Valve

Product Name Pressure Reducing Valve
Product No MFVE202-JY001
DN 50 65 80 100 125 150 200 250 300 350 400 500
Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250

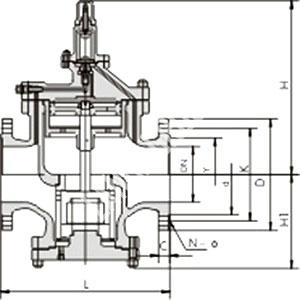

DN Dimension Appearance(PN1.6-4.0)
L H Hl
1.6/2.5MPa 4.0MPa
15 160 180 265 85
20 160 180 265 85
25 180 200 280 95
32 200 220 280 95
40 220 240 290 105
50 250 270 300 130
65 280 300 315 145
80 310 330 330 170
100 350 380 405 200
125 400 450 450 225
150 450 500 485 265
200 500 550 570 290
250 650 640 325
300 800 740 360
350 850 810 395
400 900 950 430
500 950 1080 500
DN Dimension Appearance(PN6.4-16.0)
L H Hl
6.4MPa 10.0/16.0MPa
15 180 180 280 100
20 180 200 280 100
25 200 220 300 115
32 220 230 300 115
40 240 240 315 130
50 270 300 340 135
65 300 340 355 150
80 330 360 370 175
100 380 450 205
125 450 510 235
150 500 555 275
200 550 640 300
250 650 720 335
300 800 830 375
350 850 880 410
400 900 1020 445
500 950 1080 515
