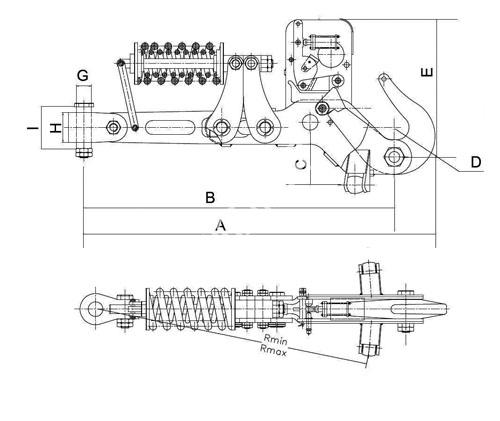

PNEUMATIC CONTROL TOWING HOOK | ||||||||||||||
|
Product No. |
Max |
Main Size(mm) |
Weight |
Connection Size(mm) |
Action Radius(mm) |
Cylinder | ||||||||
|
A |
B |
C |
D |
E |
G |
H |
I |
Max R |
Min R | |||||
|
MOME109-PH001 |
20 |
1830 |
1630 |
340 |
R50 |
614 |
342 |
70 |
150 |
210 |
1475 |
1400 |
6--8 | |
|
MOME109-PH002 |
30 |
2015 |
1780 |
384 |
R70 |
805 |
595 |
85 |
170 |
240 |
1805 |
1690 | ||
|
MOME109-PH003 |
40 |
1935 |
1655 |
404 |
R75 |
830 |
697 |
90 |
190 |
260 |
1590 |
1490 | ||
|
MOME109-PH004 |
60 |
2270 |
1906 |
485 |
R90 |
940 |
1234 |
110 |
240 |
340 |
1845 |
1740 | ||
