Marine Valves >> Strainer >> Water Strainer >> T-Type StrainerT-Type Strainer
Product Name T-Type Strainer
Parameter List

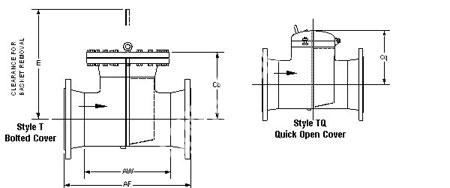

Product No. Pipe Size AF AW Cb Cq
150# 300# 150# 300# 150# 300#
MFVE203-LQ001 50 254 267 127 146 156 - -
MFVE203-LQ002 65 292 305 152 168 178 - -
MFVE203-LQ003 80 311 330 171 181 194 - -
MFVE203-LQ004 100 362 381 210 206 222 - -
MFVE203-LQ005 125 425 445 248 238 257 - -
MFVE203-LQ006 150 464 483 286 257 279 235 244
MFVE203-LQ007 200 559 578 356 308 330 270 283
MFVE203-LQ008 250 635 667 432 349 381 333 343
MFVE203-LQ009 300 737 768 508 400 435 397 397
MFVE203-LQ010 350 813 845 559 441 476 410 435
MFVE203-LQ011 400 864 902 610 470 508 473 473
MFVE203-LQ012 450 965 1003 686 524 562 530 537
MFVE203-LQ013 500 1051 1086 762 568 606 600 600
MFVE203-LQ014 600 1168 1200 864 632 670 689 689
