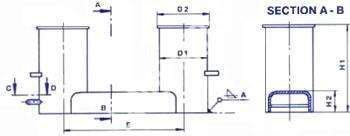

Double Bollard DIN-82607
Product No. Type Rated Towing Pull kN TubeD1 B D2 E H1 H2 S2 A Weight(kg)
MOME009-DD001 D1 10 139.7*6.3 130 160 430 370 105 5 4 20.6
MOME009-DD002 D2 20 219.1*8.0 180 242 570 475 115 6 4 52.3
MOME009-DD003 D3 32 273.0*10.0 250 300 700 570 135 8 5 99.5
MOME009-DD004 D5 50 323.9*10.0 300 355 880 670 150 8 6 145.4
MOME009-DD005 D8 80 355.6*14.2 330 390 1050 780 175 10 8 259.4
MOME009-DD006 D12 120 457.0*16.0 420 490 1200 860 195 16 12 437
MOME009-DD007 D20 200 508.0*17.5 470 545 1350 970 230 16

-

 571
MOME009-DD008 D32 320 559.0*20.0 530 600 1400 1000 270 16

-

 830
