Mooring Bollards >> Double Bollards >> N.S.2584 Double Bollards >> Double Bollards NS-2584

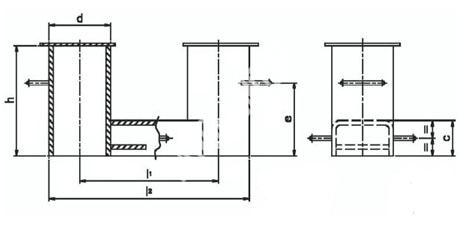

Double Bollard NS-2584
Product NO. Type F Dimension(mm) Weight(kg)
M T D C E H L1 L2
MOME009-DNS001 125 4.5 13.2 140 80 165 250 315 455 26
MOME009-DNS002 160 5.6 15.8 168 90 195 300 400 568 37
MOME009-DNS003 200 10.2 29 219 100 250 400 500 719 75
MOME009-DNS004 250 13.2 37.2 273 125 315 500 630 903 124
MOME009-DNS005 315 20.9 55 324 150 375 600 800 1124 230
MOME009-DNS006 400 28.5 75.4 406 175 435 700 1000 1406 356
MOME009-DNS007 500 52 123.6 508 200 515 830 1250 1758 723
MOME009-DNS008 630 62.7 158.1 610 225 615 1000 1570 2180 1084
MOME009-DNS009 710 83.1 219.3 711 250 675 1100 1750 2461 1532
