Mooring Bollards >> Cruciform Bollards >> Single Cruciform Bollards >> JIS F-2804 Cross BittSingle Cruciform Bollards(JIS F-2084)

Single Cruciform  JIS F-2804(Cross Bitt)

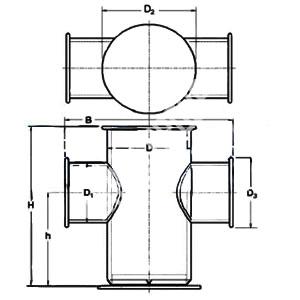

Product No.	Nominal Dia.(mm)	Dimension(mm)								Wire Rope Dia.(mm)
		H	h	B	D	D1	D2	D3	Weight(kg)
MOME009-SC001	150	480	280	460	165	114	206	158	33	16
MOME009-SC002	200	560	320	520	216	165	256	206	60	22
MOME009-SC003	250	640	360	610	267	216	308	256	102	28
MOME009-SC004	300	680	380	660	318	267	360	308	154	34
MOME009-SC005	350	720	420	720	355	267	400	312	186	38
