Product Name |

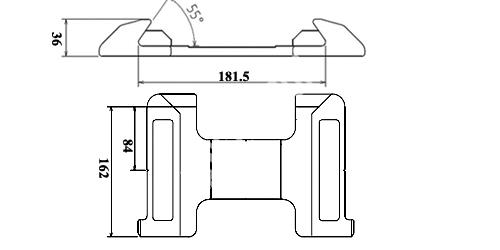

Dovetail Foundation Single Type ( 55 degree) |
|
Product No. |
MHAE221-DF002 |
|
Material |
Casting Steel |
|
Min.Breaking Loads |
500KN |
|
Shear |
420KN |
|
Weight |
4.2KG |
|
Finish |
Weldable Shop Primer |
|
Certification |
All items are approved by major classification societies. |
|
Remark |
1.Center marking for easy installation |
|
2.We can produce them according to your request about the length,material and finish. |
