Product Name JIS F7309 16K Marine Cast Iron Globe Valve

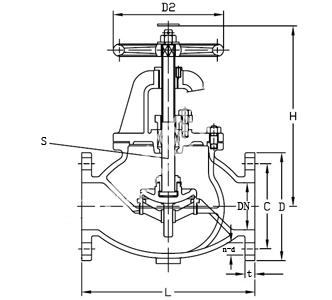

Product No DN L D C n-d t H D2 S
MFVEJC4-JIS01 50 220 155 120 8-19 20 285 160 110
MFVEJC4-JIS02 65 270 175 140 8-19 22 310 200 135
MFVEJC4-JIS03 80 300 200 160 8-23 24 340 224 160
MFVEJC4-JIS04 100 350 225 185 8-23 26 385 250 195
MFVEJC4-JIS05 125 430 270 225 8-25 26 455 315 240
MFVEJC4-JIS06 150 500 305 260 12-25 28 510 355 280
MFVEJC4-JIS07 200 570 350 305 12-25 30 630 450 365
* Applicable scope:The products are used for controlling the medium to open and close,preventing refluence in fuel oil piping,lucricating oil piping,water piping and steam piping at temperatures 205C or less. Dimensions of Flanges are according to JIS B2220 Flanges dimensions of Steel Pipe
* Available for us to all kinds of marine Valves,Flanges,Pipe,and other marine equipments
* All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc., Certificated of Quality System ISO9001:2000
