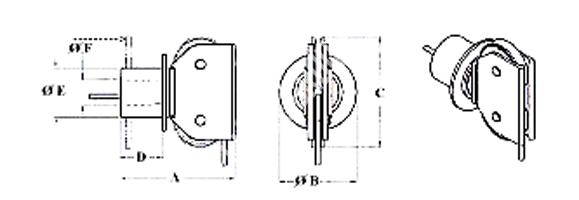

FLANGE MOUNTED DOUBLE SHEAVE FAIRLEADS

Product No.

Max
Wire
Size
(inch)

Wire
Breaking
Strength
(1bs)

Sheave
Tread
Dia
(inch)

All Measurements(inch)

Weight
(1bs)

A

B

C

D

E

F

MOME102-FD001

3/4

58,800

8 1/4

22 7/16

16

21

8 3/8

9

4 1/2

266

MOME102-FD002

1

103,400

9 3/4

26 7/16

17

23 1/2

10 3/8

11

5 5/8

379

MOME102-FD003

1 1/4

159,800

11 1/4

28 11/16

18 3/4

27 1/2

10 5/8

11 3/4

6 5/16

585

MOME102-FD004

1 1/2

228,000

14 1/4

36 1/8

25

35 5/8

13 3/4

16

8 1/2

1212

MOME102-FD005

1 3/4

266,000

18 1/2

43 1/8

27

46

16

18

9 1/2

1799

MOME102-FD006

2

344,000

20

48

30

47 1/2

17 3/4

20

12

2160

MOME102-FD007

2 1/4

494,000

24 7/8

54 7/8

35 1/2

59 3/4

22 1/4

24

13

4113

MOME102-FD008

2 1/2

524,000

30

61

39

70 5/8

24 1/4

26

14 1/2

5330

MOME102-FD009

3

818,000

44

104

60

105 5/8

41

39 1/2

26 1/2

16090

MOME102-FD010

3

818,000

55 1/2

117

60

130 5/8

41

39 1/2

26 1/2

18500
