Marine Valves >> JIS Marine Valves >> Globe Valves >> JIS F7311JIS F7311 5K Marine Cast Steel Globe Valve

Product Name	JIS F7311 5K Marine Cast Steel Globe Valve

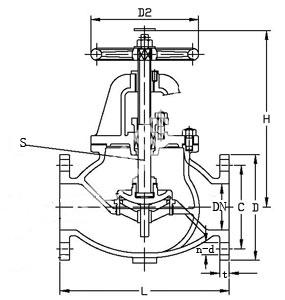

Product No.	DN	L	D	C	n-d	t	H	D2	S
MFVEJC4-JIS011	50	210	130	105	4-15	16	270	160	110
MFVEJC4-JIS012	65	250	155	130	4-15	18	300	180	135
MFVEJC4-JIS013	80	280	180	145	4-19	18	310	180	160
MFVEJC4-JIS014	100	340	200	165	8-19	20	360	224	195
MFVEJC4-JIS015	125	410	235	200	8-19	20	390	250	240
MFVEJC4-JIS016	150	480	265	230	8-19	22	445	280	280
MFVEJC4-JIS017	200	570	320	280	8-23	24	530	315	365
MFVEJC4-JIS018	250	740	385	345	12-23	26	650	355	460
MFVEJC4-JIS019	300	840	430	390	12-23	28	740	400	560
