Product Name |

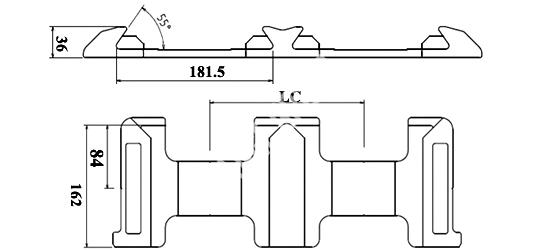

Dovetail Foundation Double Type ( 55 degree) | |
|
Material |
Casting Steel | |
|
Min.Breaking Loads |
500KN | |
|
Shear |
420KN | |
|
Finish |
Weldable Shop Primer | |
|
Certification |
All items are approved by major classification societies. | |
|
Product No. |
LC(mm) | Weight(kg) |
|
MHAE221-DF004-01 |
203 | 7.0 |
|
MHAE221-DF004-02 |
216 | 8.0 |
|
MHAE221-DF004-03 |
258 | 8.5 |
|
Remark | ||
