Marine Valves >> JIS Marine Valves >> Globe Valves >> JIS F7313JIS F7313 20K Marine Cast Steel Globe Valve
 |
 | |||||||
| Product Name | JIS F7313 20K Marine Cast Steel Globe Valve | |||||||

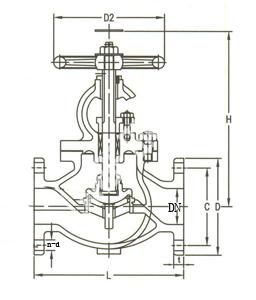

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJC4-JIS030 | 32 | 190 | 135 | 100 | 4-19 | 18 | 270 | 160 |
| MFVEJC4-JIS031 | 40 | 200 | 140 | 105 | 4-19 | 18 | 290 | 160 |
| MFVEJC4-JIS032 | 50 | 230 | 155 | 120 | 8-19 | 18 | 305 | 200 |
| MFVEJC4-JIS033 | 65 | 270 | 175 | 140 | 8-19 | 20 | 345 | 224 |
| MFVEJC4-JIS034 | 80 | 300 | 200 | 160 | 8-23 | 22 | 385 | 250 |
| MFVEJC4-JIS035 | 100 | 350 | 225 | 185 | 8-23 | 24 | 440 | 280 |
| MFVEJC4-JIS036 | 125 | 430 | 270 | 225 | 8-25 | 26 | 500 | 315 |
| MFVEJC4-JIS037 | 150 | 500 | 305 | 260 | 12-25 | 28 | 550 | 355 |
| MFVEJC4-JIS038 | 200 | 560 | 350 | 305 | 12-25 | 30 | 630 | 450 |
| MFVEJC4-JIS039 | 250 | 660 | 430 | 380 | 12-27 | 34 | 725 | 560 |
