Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7302JIS F7302 5K Marine Bronze Angle Valve
 |
 | ||||||||
| Product Name | JIS F7302 5K Marine Bronze Angle Valve | ||||||||

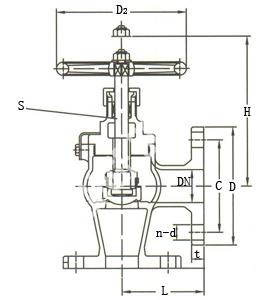

| Product No | DN | L | H | D | C | t | n-d | D2 | S |
| MFVEJFT4-JIS011 | 15 | 55 | 120 | 80 | 60 | 9 | 4-12 | 80 | 8 |
| MFVEJFT4-JIS012 | 20 | 60 | 130 | 85 | 65 | 10 | 4-12 | 100 | 10 |
| MFVEJFT4-JIS013 | 25 | 65 | 145 | 95 | 75 | 10 | 4-12 | 125 | 10 |
| MFVEJFT4-JIS014 | 32 | 80 | 150 | 115 | 90 | 12 | 4-15 | 125 | 10 |
| MFVEJFT4-JIS015 | 40 | 85 | 165 | 120 | 95 | 12 | 4-15 | 140 | 12 |
| MFVEJFT4-JIS016 | 50 | 100 | 200 | 130 | 105 | 14 | 4-15 | 140 | 12 |
| MFVEJFT4-JIS017 | 65 | 115 | 220 | 155 | 130 | 14 | 4-15 | 160 | 14 |
