Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7306JIS F7306 5K Marine Cast Iron Angle Valve
 |
 | |||||||
| Product Name | JIS F7306 5K Marine Cast Iron Angle Valve | |||||||

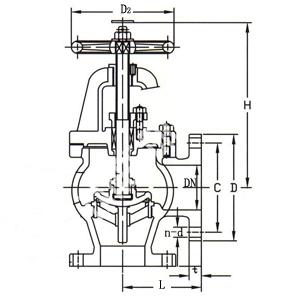

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJFT4-JIS031 | 50 | 100 | 130 | 105 | 4-15 | 16 | 240 | 160 |
| MFVEJFT4-JIS032 | 65 | 115 | 155 | 130 | 4-15 | 18 | 255 | 180 |
| MFVEJFT4-JIS033 | 80 | 130 | 180 | 145 | 4-19 | 18 | 265 | 180 |
| MFVEJFT4-JIS034 | 100 | 150 | 200 | 165 | 8-19 | 20 | 310 | 224 |
| MFVEJFT4-JIS035 | 125 | 170 | 235 | 200 | 8-19 | 20 | 330 | 250 |
| MFVEJFT4-JIS036 | 150 | 190 | 265 | 230 | 8-19 | 22 | 380 | 280 |
| MFVEJFT4-JIS037 | 200 | 220 | 320 | 280 | 8-23 | 24 | 450 | 315 |
| MFVEJFT4-JIS038 | 250 | 275 | 385 | 345 | 12-23 | 26 | 540 | 355 |
| MFVEJFT4-JIS039 | 300 | 310 | 430 | 390 | 12-23 | 28 | 610 | 400 |
| * Click to contact me for more technical details | ||||||||
