Marine Steering Gear System >> Steering Gear >> Rapson Slide Type >> Two Ram Four Cylinder Fork TypeMarine Steering Gear-Two Ram Two Fork Type
  | |||||||||
|
Product Name |
2-Ram-4-Cyliner Fork Type Steering Gear | ||||||||
|
Standards |
ISO 8847:2004,ISO 13929:2001,JIS F0809:1991, JIS F 1024:1998, JIS F 8049:1989 | ||||||||
|
Max. Mech. Rudder Angle |
+-45 Degrees | ||||||||
|
Time Of Rudder Movement |
《20 S | ||||||||
|
Working Pressure |
13Mpa-20Mpa | ||||||||
|
Design Pressure |
16Mpa-24Mpa | ||||||||
|
Product No. |

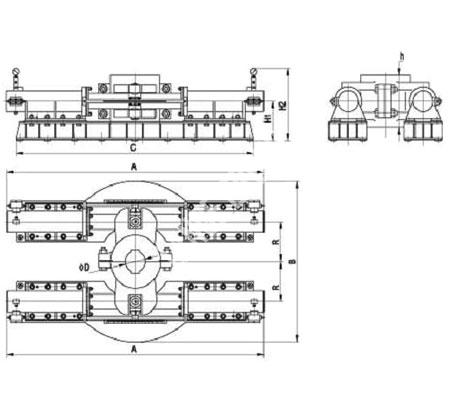

Working Torque | A | B | C | H1 | H2 | h | D | R |
| (kN.m) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
|
MDEE060-FM01 |
320-400 | 3270 | 1470 | 3030 | 530 | 1010 | 500 | 《340 | 450 |
|
MDEE060-FM02 |
500-630 | 3610 | 1572 | 3400 | 560 | 1040 | 560 | 《420 | 500 |
|
MDEE060-FM03 |
700-800 | 3914 | 1740 | 3600 | 560 | 1053 | 740 | 《420 | 570 |
|
MDEE060-FM04 |
900-1000 | 4300 | 1910 | 3800 | 560 | 1070 | 800 | 《450 | 600 |
|
Componets |
Two fork type actuating system(when one meets a malfunction,it will be isolated immediately and the other one will ensure the steering ability) two oil pump and motor power units,one oil tank, relief valve and by-pass valve and other components. | ||||||||
|
Control mode |
Valve control, pump control | ||||||||
|
Suitable operation system |
Follow up system, non-follow up system autopilot system | ||||||||
|
Vessel |
Containers, tankers, ferries, cargo ships, large ocean vessels any other vessels that need high demand of safety | ||||||||
|
Main Benefits |
Compact design,lower costs, simple installation, simple maintenance, well performance in sealing, multiple interfacing with monitoring and autopilot systems, proven perfect performance in all conditions | ||||||||
