Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7314JIS F7314 20K Marine Cast Steel Angle Valve
 |
 | ||||||
| Product Name | JIS F7314 20K Marine Cast Steel Angle Valve | ||||||

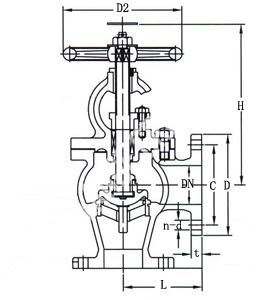

| Product No | DN | L | D | C | n-d | t | H |
| MFVEJFK4-JIS030 | 32 | 100 | 135 | 100 | 4-19 | 18 | 270 |
| MFVEJFK4-JIS031 | 40 | 110 | 140 | 105 | 4-19 | 18 | 290 |
| MFVEJFK4-JIS032 | 50 | 125 | 155 | 120 | 8-19 | 18 | 305 |
| MFVEJFK4-JIS033 | 65 | 135 | 175 | 140 | 8-19 | 20 | 345 |
| MFVEJFK4-JIS034 | 80 | 150 | 200 | 160 | 8-23 | 22 | 385 |
| MFVEJFK4-JIS035 | 100 | 170 | 225 | 185 | 8-23 | 24 | 440 |
| MFVEJFK4-JIS036 | 125 | 200 | 270 | 225 | 8-25 | 26 | 500 |
| MFVEJFK4-JIS037 | 150 | 225 | 305 | 260 | 12-25 | 28 | 550 |
| MFVEJFK4-JIS038 | 200 | 280 | 350 | 305 | 12-25 | 30 | 630 |
| MFVEJFK4-JIS039 | 250 | 310 | 430 | 380 | 12-27 | 34 | 725 |
| * Click here to contact me for more technical details | |||||||
