Marine Valves >> JIS Marine Valves >> Gate Valves >> JIS F7367JIS F7367 5K Marine Bronze Rising Stem Type Gate Valve

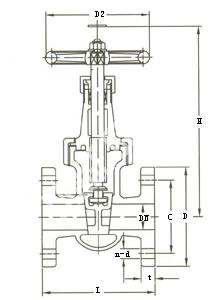

Product Name	JIS F7367 5K Marine Bronze Rising Stem Type Gate
Product No	DN	L	D	C	n-d	t	H	D2
MFVEZT4-JIS021	15	90	80	60	4-12	9	175	80
MFVEZT4-JIS022	20	100	85	65	4-12	10	200	80
MFVEZT4-JIS023	25	110	95	75	4-12	10	220	100
MFVEZT4-JIS024	32	130	115	90	4-15	12	250	100
MFVEZT4-JIS025	40	140	120	95	4-15	12	282	125
MFVEZT4-JIS026	50	180	130	105	4-15	16	290	125
MFVEZT4-JIS027	65	190	155	130	4-15	18	302	140
MFVEZT4-JIS028	80	200	180	145	4-19	18	335	160
MFVEZT4-JIS029	100	230	200	165	4-19	18	375	180
