Marine Valves >> JIS Marine Valves >> Gate Valves >> JIS F7368JIS F7368 10K Marine Bronze Rising Stem Type Gate Valve
 |
 | |||||||
| Product Name | JIS F7368 10K Marine Bronze Rising Stem Type Gate Valve | |||||||

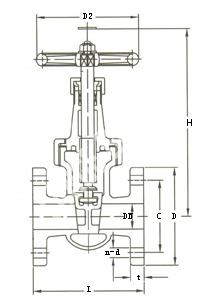

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEZT4-JIS011 | 15 | 100 | 95 | 70 | 4-15 | 12 | 175 | 80 |
| MFVEZT4-JIS012 | 20 | 110 | 100 | 75 | 4-15 | 14 | 200 | 80 |
| MFVEZT4-JIS013 | 25 | 120 | 125 | 90 | 4-19 | 14 | 220 | 100 |
| MFVEZT4-JIS014 | 32 | 140 | 135 | 100 | 4-19 | 16 | 250 | 100 |
| MFVEZT4-JIS015 | 40 | 150 | 140 | 105 | 4-19 | 16 | 282 | 125 |
| MFVEZT4-JIS016 | 50 | 200 | 155 | 120 | 4-19 | 16 | 290 | 125 |
| MFVEZT4-JIS017 | 65 | 220 | 175 | 140 | 4-19 | 18 | 302 | 140 |
