Marine Valves >> JIS Marine Valves >> Gate Valves >> JIS F7363JIS F7363 5K Marine Cast Iron Gate Valve
 |
 | |||||||
| Product Name | JIS F7363 5K Marine Cast Iron Gate Valve | |||||||

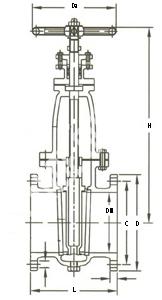

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEZK4-JIS011 | 50 | 180 | 130 | 105 | 4-15 | 16 | 285 | 125 |
| MFVEZK4-JIS012 | 65 | 190 | 155 | 130 | 4-15 | 18 | 330 | 140 |
| MFVEZK4-JIS013 | 80 | 200 | 180 | 145 | 4-15 | 18 | 380 | 160 |
| MFVEZK4-JIS014 | 100 | 230 | 200 | 165 | 8-19 | 20 | 430 | 180 |
| MFVEZK4-JIS015 | 125 | 250 | 235 | 200 | 8-19 | 20 | 495 | 200 |
| MFVEZK4-JIS016 | 150 | 270 | 265 | 230 | 8-19 | 22 | 560 | 224 |
| MFVEZK4-JIS017 | 200 | 290 | 320 | 280 | 8-23 | 24 | 680 | 280 |
| MFVEZK4-JIS018 | 250 | 330 | 385 | 345 | 12-23 | 26 | 800 | 355 |
| MFVEZK4-JIS019 | 300 | 370 | 430 | 390 | 12-23 | 28 | 920 | 400 |
| MFVEZK4-JIS020 | 350 | 400 | 480 | 435 | 12-25 | 30 | 1000 | 450 |
| MFVEZK4-JIS021 | 400 | 470 | 540 | 495 | 16-25 | 30 | 1100 | 500 |
| MFVEZK4-JIS022 | 450 | 500 | 605 | 555 | 16-25 | 30 | 1420 | 600 |
