Marine Valves >> JIS Marine Valves >> Gate Valves >> JIS F7364JIS F7364 10K Marine Cast Iron Gate Valve
 |
 | |||||||

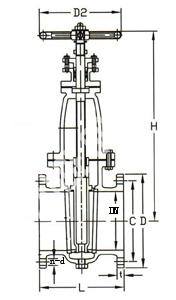

| Product Name | JIS F7364 10K Marine Cast Iron Gate Valve | |||||||
| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEZK4-JIS021 | 50 | 200 | 155 | 120 | 4-19 | 20 | 300 | 140 |
| MFVEZK4-JIS022 | 65 | 220 | 175 | 140 | 4-19 | 22 | 350 | 160 |
| MFVEZK4-JIS023 | 80 | 230 | 185 | 150 | 8-19 | 22 | 400 | 180 |
| MFVEZK4-JIS024 | 100 | 250 | 210 | 175 | 8-19 | 24 | 450 | 200 |
| MFVEZK4-JIS025 | 125 | 270 | 250 | 210 | 8-23 | 24 | 520 | 224 |
| MFVEZK4-JIS026 | 150 | 290 | 280 | 240 | 8-23 | 26 | 580 | 250 |
| MFVEZK4-JIS027 | 200 | 320 | 330 | 290 | 12-23 | 26 | 700 | 315 |
| MFVEZK4-JIS028 | 250 | 380 | 400 | 355 | 12-25 | 30 | 840 | 400 |
| MFVEZK4-JIS029 | 300 | 440 | 445 | 400 | 16-25 | 32 | 960 | 450 |
| MFVEZK4-JIS030 | 350 | 445 | 490 | 445 | 16-25 | 34 | 1050 | 500 |
| MFVEZK4-JIS031 | 400 | 490 | 560 | 510 | 16-27 | 36 | 1150 | 560 |
| MFVEZK4-JIS032 | 450 | 640 | 620 | 565 | 20-27 | 38 | 1491 | 630 |
