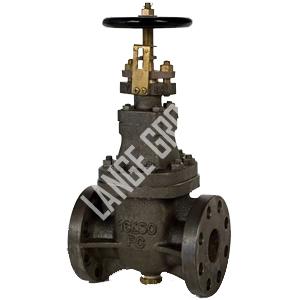

Marine Valves >> JIS Marine Valves >> Gate Valves >> JIS F7369JIS F7369 16K Marine Cast Iron Gate Valve
 |
 | |||||||
| Product Name | JIS F7369 16K Marine Cast Iron Gate Valve | |||||||
| Product No. | DN | L | D | C | n-d | t | H | D2 |
| MFVEZK4-JIS031 | 65 | 220 | 175 | 140 | 8-19 | 22 | 350 | 160 |
| MFVEZK4-JIS032 | 80 | 234 | 200 | 160 | 8-23 | 24 | 400 | 180 |
| MFVEZK4-JIS033 | 100 | 254 | 225 | 185 | 8-23 | 26 | 450 | 200 |
| MFVEZK4-JIS034 | 125 | 274 | 270 | 225 | 8-25 | 26 | 520 | 224 |
| MFVEZK4-JIS035 | 150 | 294 | 305 | 260 | 12-25 | 28 | 580 | 250 |
| MFVEZK4-JIS036 | 200 | 328 | 350 | 305 | 12-25 | 30 | 700 | 315 |
| MFVEZK4-JIS037 | 250 | 388 | 430 | 380 | 12-27 | 34 | 840 | 400 |
