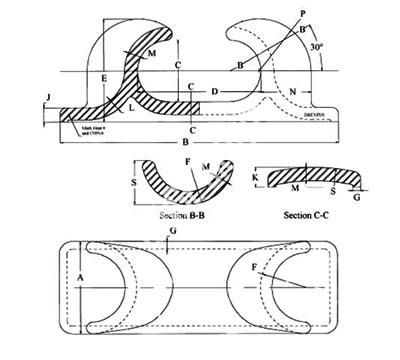

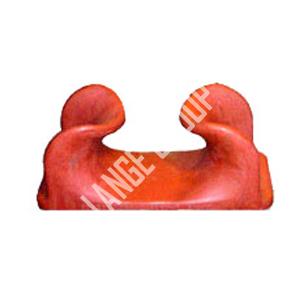

Open Chock JIS F-2006 Type FC

Product No.

Size
A(inch)

B
(inch)

C
(inch)

D
(inch)

E
(inch)

F
(inch)

G
(inch)

J
(inch)

K
(inch)

L
(inch)

M
(inch)

N
(inch)

P
(inch)

S
(inch)

MOME103-OC001

9"

27-3/4

6

12

10-1/8

4-1/2

7/8

1-1/2

2-1/16

1-1/8

1-3/8

4-7/8

5-1/16

4-1/4

MOME103-OC002

10"

30-3/8

6-5/8

13-1/4

11-1/8

5

1

1-9/16

2-3/16

1-1/4

1-1/2

5-7/16

5-3/8

4-3/4

MOME103-OC003

12"

36

8

16

13-3/8

6

1-1/4

1-7/8

2-5/8

1-1/2

1-3/4

6-1/2

6-3/4

5-3/4

MOME103-OC004

14"

42

9-3/8

18-3/4

15-5/8

7

1-1/4

2-3/16

3-1/16

1-3/4

2

7-5/8

7-7/8

6-11/16

MOME103-OC005

16"

48

10-3/4

21-1/2

17-3/4

8

1-3/8

1-3/8

3-3/8

2

2-1/4

8-5/8

9

7-3/4

MOME103-OC006

18"

54

12

24

20

9

1-1/2

1-1/2

3-7/8

2-1/4

2-1/2

9-3/4

10-1/8

8-5/8
