Marine Valves >> JIS Marine Valves >> Gate Valves >> JIS F7366JIS F7366 10K Marine Cast Steel Gate Valve
 |
 |
|||||||
| Product Name | JIS F7366 10K Marine Cast Steel Gate Valve | |||||||

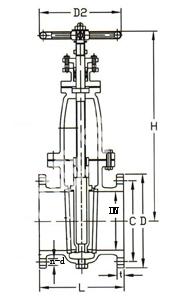

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEZC4-JIS011 | 50 | 200 | 155 | 120 | 4-19 | 16 | 300 | 140 |
| MFVEZC4-JIS012 | 65 | 220 | 175 | 140 | 4-19 | 18 | 350 | 160 |
| MFVEZC4-JIS013 | 80 | 230 | 185 | 150 | 8-19 | 18 | 400 | 180 |
| MFVEZC4-JIS014 | 100 | 250 | 210 | 175 | 8-19 | 18 | 450 | 200 |
| MFVEZC4-JIS015 | 125 | 270 | 250 | 210 | 8-23 | 20 | 520 | 224 |
| MFVEZC4-JIS016 | 150 | 290 | 280 | 240 | 8-23 | 22 | 580 | 250 |
| MFVEZC4-JIS017 | 200 | 310 | 330 | 290 | 12-23 | 22 | 700 | 315 |
| MFVEZC4-JIS018 | 250 | 340 | 400 | 355 | 12-25 | 24 | 840 | 400 |
| MFVEZC4-JIS019 | 300 | 380 | 445 | 400 | 16-25 | 24 | 960 | 450 |
