JIS F7305 5K Marine Cast Iron Globe Valve,JIS F7305,Globe Valves,JIS Marine Valves,Marine Valves -Product Details

Marine Valves >> JIS Marine Valves >> Globe Valves >> JIS F7305JIS F7305 5K Marine Cast Iron Globe Valve


Product Name	JIS F7305 5K Marine Cast Iron Globe Valve

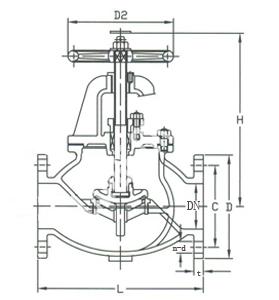

Product No	DN	L	D	C	n-d	t	H	D2
MFVEJK4-JIS011	50	210	130	105	4-15	16	270	160
MFVEJK4-JIS012	65	250	155	130	4-15	18	300	180
MFVEJK4-JIS013	80	280	180	145	4-19	18	310	180
MFVEJK4-JIS014	100	340	200	165	8-19	20	360	224
MFVEJK4-JIS015	125	410	235	200	8-19	20	390	250
MFVEJK4-JIS016	150	480	265	230	8-19	22	445	280
MFVEJK4-JIS017	200	570	320	280	8-23	24	530	315
MFVEJK4-JIS018	250	740	385	345	12-23	26	650	355
MFVEJK4-JIS019	300	840	430	390	12-23	28	740	400
