Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7308JIS F7308 10K Marine Cast Iron Angle Valve
 |
 | |||||||
| Product Name | JIS F7308 10K Marine Cast Iron Angle Valve | |||||||

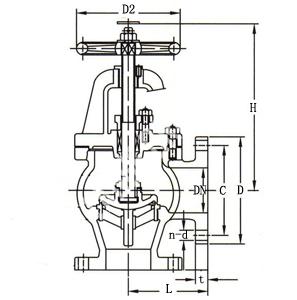

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJFK4-JIS041 | 50 | 120 | 155 | 120 | 4-19 | 20 | 255 | 160 |
| MFVEJFK4-JIS042 | 65 | 130 | 175 | 140 | 4-19 | 22 | 270 | 200 |
| MFVEJFK4-JIS043 | 80 | 140 | 185 | 150 | 8-19 | 22 | 275 | 200 |
| MFVEJFK4-JIS044 | 100 | 160 | 210 | 175 | 8-19 | 24 | 315 | 250 |
| MFVEJFK4-JIS045 | 125 | 180 | 250 | 210 | 8-23 | 24 | 360 | 280 |
| MFVEJFK4-JIS046 | 150 | 205 | 280 | 240 | 8-23 | 26 | 405 | 315 |
| MFVEJFK4-JIS047 | 200 | 230 | 330 | 290 | 12-23 | 26 | 475 | 355 |
| MFVEJFK4-JIS048 | 250 | 290 | 400 | 355 | 12-25 | 30 | 570 | 450 |
| MFVEJFK4-JIS049 | 300 | 320 | 445 | 400 | 16-25 | 32 | 645 | 500 |
