Product Name |

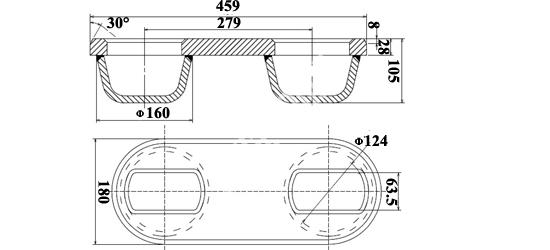

Double Flush Container Foundation (Longitudinal Type) |
|
Product No. |
MHAE221-FD001 |
|
Material |
Casting steel or Ship building steel |
|
Min.Breaking Loads Tension |
500KN |
|
Shear |
420KN |
|
Min.Breaking Loads Compression |
2000KN |
|
Finish |
Weldable shop primer |
|
Certification |
All items are approved by major classification societies |
|
Remark |
Centre marking for easy installation |
|
Other dimensions, materials and finishes upon request |
