Marine Valves >> JIS Marine Valves >> Check Valves >> JIS F7358JIS F7358 5K Marine Cast Iron Lift Check Valve
  | ||||||||
| Product Name | JIS F7358 5K Marine Cast Iron Lift Check Valve | |||||||

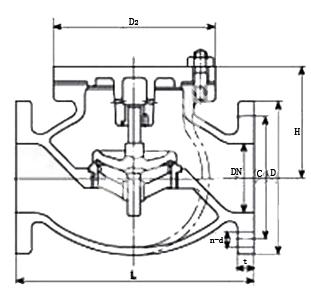

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEHK4-JIS011 | 50 | 210 | 130 | 105 | 4-15 | 16 | 107 | 140 |
| MFVEHK4-JIS012 | 65 | 250 | 155 | 130 | 4-15 | 18 | 124 | 160 |
| MFVEHK4-JIS013 | 80 | 280 | 180 | 145 | 4-19 | 18 | 129 | 190 |
| MFVEHK4-JIS014 | 100 | 340 | 200 | 165 | 8-19 | 20 | 146 | 215 |
| MFVEHK4-JIS015 | 125 | 410 | 235 | 200 | 8-19 | 20 | 166 | 245 |
| MFVEHK4-JIS016 | 150 | 480 | 265 | 230 | 8-19 | 22 | 188 | 270 |
| MFVEHK4-JIS017 | 200 | 570 | 320 | 280 | 8-23 | 24 | 212 | 335 |
