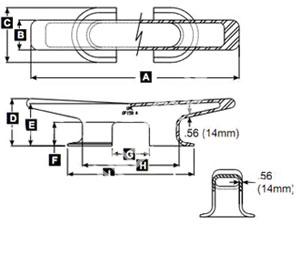

Mooring Cleat >> Open Cleats >> Open Cleat Type-1
|
|
| |||||||||
| Open Cleat-1 | ||||||||||
| Product No. | Dimension(mm) | Weight(kg) | ||||||||
| A | B | C | D | E | F | G | H | I | ||
| MOME005-OC1001 | 914 | 127 | 254 | 181 | 149 | 89 | 127 | 419 | 572 | 38 |
| MOME005-OC1002 | 1067 | 152 | 279 | 191 | 165 | 83 | 191 | 495 | 648 | 52 |
| MOME005-OC1003 | 1219 | 165 | 279 | 254 | 222 | 127 | 203 | 533 | 686 | 79 |
