Product Name |

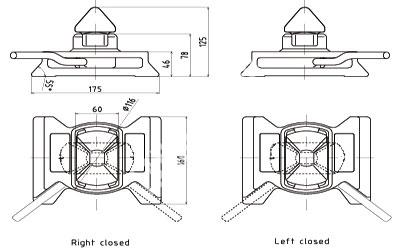

Dovetail Twist Lock(55 degree) |
|
Product No. |
MHAE221-DL002 |
|
Type |
Longitudinal Type |
|
Material |
Casting steel |
|
Mini Breaking Loads Tension |
500KN |
|
Mini Breaking Loads Shear |
420KN |
|
Mini Breaking Loads Compression |
2000KN |
|
Finish |
Hot dip galvanised |
|
Weight |
6.5KG |
|
Certification |
All items are approved by major classification societies |
|
Remark |
The transversal type is available too. |
|
Other dimensions, materials and finishes upon request |
