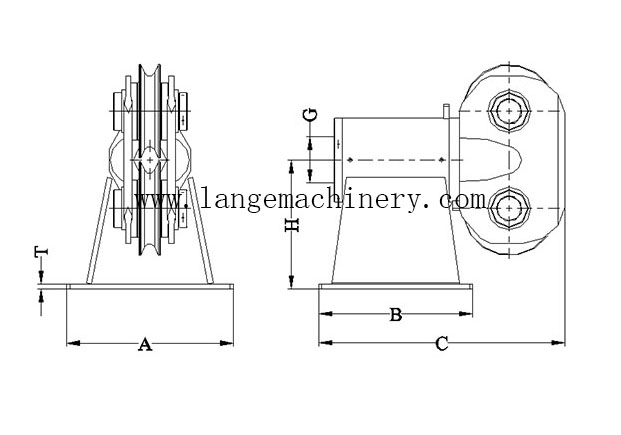

| Anchor Fairlead A-39 | ||||||||||
| Product No. | Wire Rope Dia. | Sheave Dia.(mm) | Dimension(mm) | Mass Weight | ||||||
| mm | inch | A | B | C | T | H | G | kg | ||
| MOME102-AF39001 | 25 | 1 | 254 | 559 | 356 | 651 | 20 | 292 | 90 | 367 |
| MOME102-AF39002 | 32 | 1- 1/4 | 305 | 711 | 508 | 862 | 30 | 343 | 100 | 612 |
| MOME102-AF39003 | 38 | 1- 1/2 | 406 | 762 | 762 | 1233 | 40 | 459 | 150 | 918 |
| MOME102-AF39004 | 44 | 1- 3/4 | 508 | 1067 | 914 | 1503 | 50 | 546 | 190 | 1700 |
| MOME102-AF39005 | 50 | 2 | 610 | 1219 | 1067 | 1775 | 50 | 648 | 220 | 2108 |
| MOME102-AF39006 | 64 | 2- 1/2 | 762 | 1372 | 1219 | 2103 | 60 | 800 | 250 | 2465 |
