| Anchor Fairlead A-40 | ||||||||||

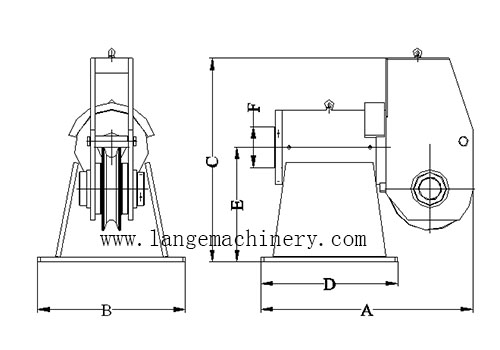

| Product No. | Wire Rope Dia. | Sheave Dia.(mm) | Dimension(mm) | Mass Weight | ||||||
| mm | inch | A | B | C | D | E | F | kg | ||
| MOME102-AF40001 | 19 | 3/4 | 210 | 627 | 406 | 511 | 405 | 279 | 114 | 122 |
| MOME102-AF40002 | 25 | 1 | 254 | 756 | 489 | 625 | 491 | 343 | 143 | 225 |
| MOME102-AF40003 | 32 | 1- 1/4 | 305 | 816 | 508 | 714 | 470 | 434 | 160 | 304 |
| MOME102-AF40004 | 38 | 1- 1/2 | 406 | 1018 | 641 | 921 | 533 | 545 | 216 | 658 |
| MOME102-AF40005 | 44 | 1- 3/4 | 508 | 1201 | 724 | 1156 | 614 | 597 | 241 | 953 |
| MOME102-AF40006 | 50 | 2 | 610 | 1343 | 762 | 1138 | 756 | 648 | 305 | 1202 |
| MOME102-AF40007 | 57 | 2- 1/4 | 632 | 1515 | 1022 | 1543 | 769 | 800 | 330 | 2177 |
| MOME102-AF40008 | 64 | 2- 1/2 | 762 | 1670 | 1016 | 1784 | 769 | 921 | 368 | 2722 |
| MOME102-AF40009 | 76 | 3 | 1118 | 2739 | 1330 | 2642 | 1228 | 876 | 673 | 7484 |
