Mooring Chock >> Bulwark Mounted Chock >> Panama Chock >> Bulwark Mounted Chock EU TypeBulwark Mounted Chock EU Type
|
|
| ||||||||

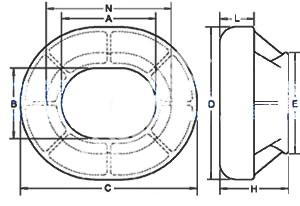

| Bulwark Mounted Chock EU Type | |||||||||
| Product No. | Dimension(mm) | Mass(kgs) | |||||||
| A | B | C | D | E | H | L | N | ||
| MOME103-BEU001 | 315 | 250 | 695 | 630 | 432 | 342 | 168 | 497 | 198 |
| MOME103-BEU002 | 425 | 280 | 925 | 780 | 516 | 450 | 224 | 661 | 358 |
| MOME103-BEU003 | 600 | 315 | 1160 | 875 | 571 | 504 | 250 | 866 | 547 |
| MOME103-BEU004 | 600 | 450 | 1160 | 1010 | 706 | 504 | 260 | 856 | 850 |
| MOME103-BEU005 | 800 | 600 | 1500 | 1300 | 860 | 580 | 290 | 1060 | 1200 |
| MOME103-BEU006 | 1000 | 800 | 1760 | 1560 | 1250 | 700 | 350 | 1450 | 1580 |
