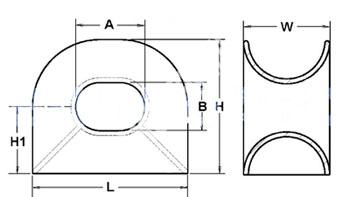

Deck Mounted Chock DIN81915 Type C
Product No.	SWL(KN)	Dimension(mm)						Mass(kgs)
		L	W	H	H1	A	B
MOME103-DINC001	20	360	200	316	158	160	115	29
MOME103-DINC002	30	450	250	390	195	200	140	48
MOME103-DINC003	50	550	300	480	240	250	180	85
MOME103-DINC004	80	680	360	586	293	320	225	136
MOME103-DINC005	125	840	440	710	355	400	270	211
MOME103-DINC006	200	1020	520	840	420	500	320	256
MOME103-DINC007	320	1300	700	1100	550	600	400	840
