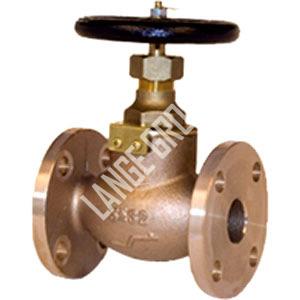

Marine Valves >> JIS Marine Valves >> Check Valves >> JIS F7351JIS F7351 5K Marine Bronze Screw Down Check Globe Valve
 |
 | ||||||||
| Product Name | JIS F7351 5K Marine Bronze Screw Down Check Globe Valve | ||||||||

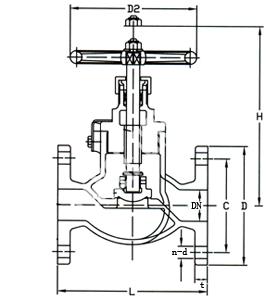

| Product No | DN | L | H | D | C | t | n-d | D2 | |
| MFVEJZT4-JIS011 | 15 | 100 | 130 | 80 | 60 | 9 | 4-12 | 80 | |
| MFVEJZT4-JIS012 | 20 | 110 | 140 | 85 | 65 | 10 | 4-12 | 100 | |
| MFVEJZT4-JIS013 | 25 | 120 | 160 | 95 | 75 | 10 | 4-12 | 125 | |
| MFVEJZT4-JIS014 | 32 | 140 | 170 | 115 | 90 | 12 | 4-12 | 125 | |
| MFVEJZT4-JIS015 | 40 | 160 | 190 | 120 | 95 | 12 | 4-15 | 140 | |
| MFVEJZT4-JIS016 | 50 | 210 | 235 | 130 | 105 | 14 | 4-15 | 140 | |
| MFVEJZT4-JIS017 | 65 | 250 | 260 | 155 | 130 | 14 | 4-15 | 160 | |
