Hydraulic Non-Retractable Fin Stabilizer >> General Non-Retractable Fin Stabilizer >> General Non-Retractable Fin Stabilizers
 |
 | |||||||||||
| Product Name | General Non-Retractable Fin Stabilizers | |||||||||||

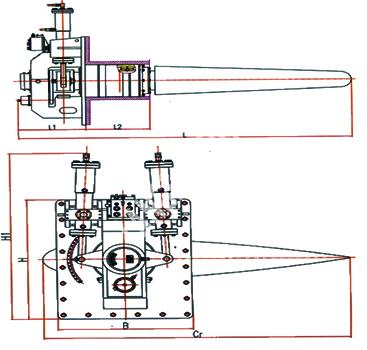

| Product No. | Area | Displacement | Sea Condition | Power | Weight | Externality Size(mm) | ||||||
| 锟絆 | T | H1锟斤拷3(m) | kw/pair | kw/pair | L1 | L2 | L | Cr | B | H | H1 | |
| MFST070-GN001 | 1 | 100-400 | 4/2.0 | 11 | 1.9 | 423 | 275 | 1786 | 1250 | 525 | 700 | 1048 |
| MFST070-GN002 | 1.6 | 400-800 | 5/2.5 | 30 | 4.1 | 559 | 350 | 2279 | 1581 | 675 | 900 | 1301 |
| MFST070-GN003 | 2.5 | 800-1000 | 5/3.5 | 30 | 5.8 | 592 | 500 | 2815 | 1978 | 825 | 1100 | 1503 |
| MFST070-GN004 | 3.5 | 1000-1900 | 5/3.5 | 44 | 9.4 | 638 | 600 | 3285 | 2339 | 950 | 1200 | 1727 |
| MFST070-GN005 | 4.5 | 1900-2800 | 6/4.0 | 44 | 13.1 | 887 | 700 | 3901 | 2651 | 1100 | 1400 | 1952 |
| MFST070-GN006 | 5.5 | 2800-3800 | 6/4.5 | 60 | 18.3 | 972 | 800 | 4325 | 2932 | 1250 | 1600 | 2176 |
| MFST070-GN007 | 6.5 | 3800-4500 | 6/5.0 | 60 | 19.5 | 4544 | 3187 | |||||
