Marine Valves >> JIS Marine Valves >> Check Valves >> JIS F7377JIS F7377 16K Marine Cast Iron Screw Down Globe Check Valve
 |
 | |||||||
| Product Name | JIS F7377 16K Marine Cast Iron Screw Down Globe Check Valve | |||||||

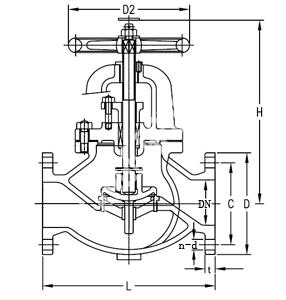

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJZK4-JIS031 | 50 | 220 | 155 | 120 | 8-19 | 20 | 285 | 160 |
| MFVEJZK4-JIS032 | 65 | 270 | 175 | 140 | 8-19 | 22 | 310 | 200 |
| MFVEJZK4-JIS033 | 80 | 300 | 200 | 160 | 8-23 | 24 | 340 | 224 |
| MFVEJZK4-JIS034 | 100 | 350 | 225 | 185 | 8-23 | 26 | 385 | 250 |
| MFVEJZK4-JIS035 | 125 | 430 | 270 | 225 | 8-25 | 26 | 455 | 315 |
| MFVEJZK4-JIS036 | 150 | 500 | 305 | 260 | 12-25 | 28 | 510 | 355 |
| MFVEJZK4-JIS037 | 200 | 570 | 350 | 305 | 12-25 | 30 | 630 | 450 |
