Mooring Chock JIS F-2007

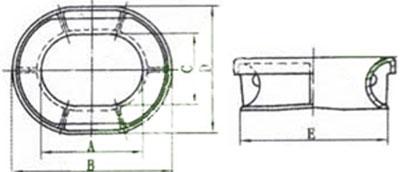

Product No. Dimensions(mm) Weight(kg)
A B C D E
MOME103-MC001 150 300 110 260 129 15.1
MOME103-MC002 200 368 150 318 143 20.5
MOME103-MC003 250 430 200 380 155 26.9
MOME103-MC004 300 500 250 450 169 42.7
MOME103-MC005 350 560 250 460 179 50.8
MOME103-MC006 400 632 250 482 195 76.3
MOME103-MC007 450 700 250 500 209 102
MOME103-MC008 500 760 250 510 219 115
