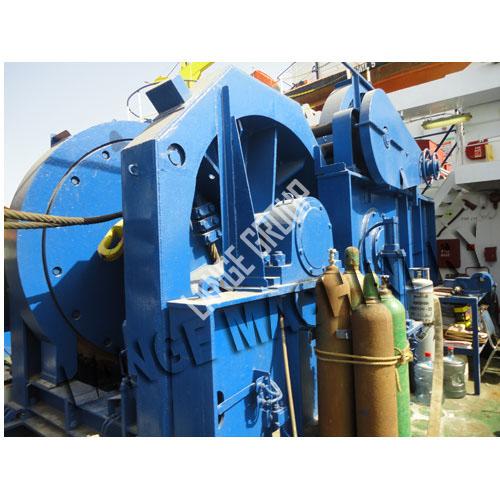

Anchor Handling Towing Winch | ||||||
| Model | MDEE010-AH | |||||
| Drive | Hydraulic Rated Pull of 250Tonnes and below medium pressure Rated Pull Above 250Tonnes low Pressure Single/Double/Triple Drums in Waterfall arrangement | |||||
| Configuration | Wire Drum Steel Wire Rope Drum Lower Drum for anchor handling operation Upper drum for towing operation | |||||
| Spooling device | On towing drum only | |||||
| Rated Pull | 75 to 350Tonnes | |||||
| Brake Holding | First Layer Static up to 450 Tonnes | |||||
| Wire Speed | Multiple Speed Ranges available | |||||
| Clutch | Hydraulic Operated | |||||
| Brake | Spring loaded, hydraulically released for brake holding of 250T and below, hydraulically operated for brake holding more than250T. | |||||
| Dynamic Braking | to facilitate high load/high speed lowering without de-clutching | |||||
| Release | Emergency quick release | |||||
| Control | Local Control for maintenance, remote control for operation | |||||
| Options | Length and tension monitoring systems Gypsies on lower drum shaft Spooling device for anchor handling drums | |||||
| Type of Vessel | Anchor Handling Tugs | |||||
