Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7378JIS F7378 16K Marine Cast Iron Screw Down Check Angle Valve
 |
 | |||||||
| Product Name | JIS F7378 16K Marine Cast Iron Screw Down Check Angle Valve | |||||||

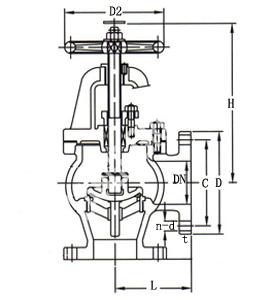

| Product No | DN | L | D | C | n-d | t | H | D2 |
| MFVEJFK4-JIS071 | 50 | 120 | 155 | 120 | 8-19 | 20 | 255 | 160 |
| MFVEJFK4-JIS072 | 65 | 130 | 175 | 140 | 8-19 | 22 | 270 | 200 |
| MFVEJFK4-JIS073 | 80 | 150 | 200 | 160 | 8-23 | 24 | 295 | 224 |
| MFVEJFK4-JIS074 | 100 | 170 | 225 | 185 | 8-23 | 26 | 330 | 250 |
| MFVEJFK4-JIS075 | 125 | 200 | 270 | 225 | 8-25 | 26 | 390 | 315 |
| MFVEJFK4-JIS076 | 150 | 225 | 305 | 260 | 12-25 | 28 | 435 | 355 |
| MFVEJFK4-JIS077 | 200 | 250 | 350 | 305 | 12-25 | 30 | 540 | 450 |
