Mooring Chock >> Deck Mounted Chock >> Panama Chock >> Deck Mounted Chock EU TypeDeck Mounted Chock EU Type



Deck Mounted Chock EU Type

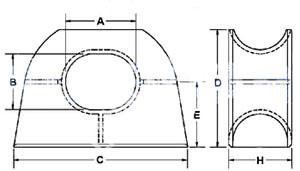

Product No. Dimension(mm) Mass(kgs)
A B C D E H
MOME103-DEU001 315 250 815 620 365 380 230
MOME103-DEU002 425 280 1075 785 450 500 378
MOME103-DEU003 500 400 1340 900 506 560 608
MOME103-DEU004 500 400 1238 840 467 450 500
MOME103-DEU005 600 315 1360 865 507 560 598
MOME103-DEU006 600 450 1360 1000 575 560 820
MOME103-DEU007 600 450 1560 1200 675 760 1200
MOME103-DEU008 800 600 1700 1160 640 580 1430
