Marine Valves >> JIS Marine Valves >> Angle Valves >> JIS F7472JIS F7472 10K Marine Cast Steel Screw Down Check Angle Valve

Product Name	JIS F7472 10K Marine Cast Steel Screw Down Check Angle Valve

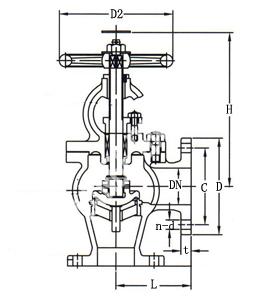

Product No	DN	L	D	C	n-d	t	H	D2
MFVEJFC4-JIS011	50	120	155	120	4-19	16	240	16
MFVEJFC4-JIS012	65	130	175	140	4-19	18	260	200
MFVEJFC4-JIS013	80	140	185	150	8-19	18	265	200
MFVEJFC4-JIS014	100	160	210	175	8-19	18	300	250
MFVEJFC4-JIS015	125	180	250	210	8-23	20	350	280
MFVEJFC4-JIS016	150	205	280	240	8-23	22	400	315
MFVEJFC4-JIS017	200	230	330	290	12-23	22	480	355
MFVEJFC4-JIS018	250	290	400	355	12-25	24	535	400
MFVEJFC4-JIS019	300	320	445	400	16-25	24	610	450
