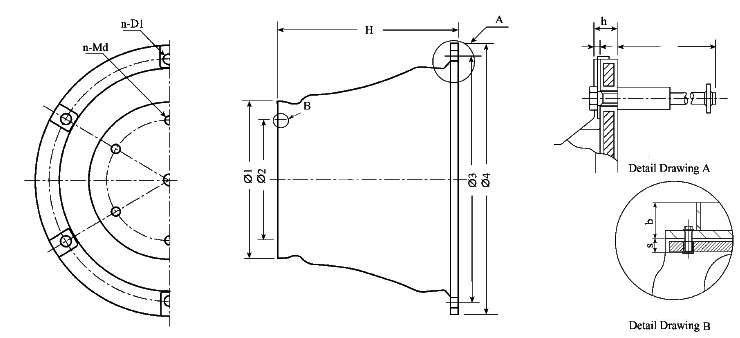

Cone Type Rubber Fender

Product No.

Types

H

h

Dia.1

Dia.2

Dia.3

Dia. 4

n

D1

Md

a

b

s

MOME107-CT01

Cone 500

500

25

425

325

675

750

4

30

M24

4

75~95

36

MOME107-CT02

Cone 600

600

27

510

390

810

900

6

30

M24

5

90~110

40

MOME107-CT03

Cone 700

700

32

595

455

945

1050

6

38

M30

6

105~125

40

MOME107-CT04

Cone 800

800

36

680

520

1080

1200

6

44

M36

7

120~140

52

MOME107-CT05

Cone 900

900

41

765

585

1215

1350

6

44

M36

8

135~155

55

MOME107-CT06

Cone 1000

1000

45

850

650

1350

1500

6

56

M42

8

150~170

65

MOME107-CT07

Cone 1100

1100

50

935

715

1485

1650

6

50

M42

8

165~185

65

MOME107-CT08

Cone 1150

1150

52

998

750

1550

1725

6

56

M42

10

170~195

70

MOME107-CT09

Cone 1200

1200

54

1020

780

1620

1800

8

50

M42

10

180~210

75

MOME107-CT10

Cone 1300

1300

59

1105

845

1755

1950

8

60

M48

11

195~225

75

MOME107-CT11

Cone 1400

1400

66

1190

930

1890

2100

8

60

M48

12

210~235

70~80

MOME107-CT12

Cone 1600

1600

72

1360

1060

2160

2400

8

70

M48

14

280~270

70~80

MOME107-CT13

Cone 1800

1800

78

1530

1190

2430

2700

10

76

M56

16

270~290

75~90

Feature:
1. The third generation product of cell fender with more reasonable structure with increased deflection, high energy absorption and longer service time.
2. Better performance in angular compression which will not reduce below 10o loading.
3. Versatile specifications meet numerous design requirements.
4. Versatile performance are available by adjusting compound formulation.
5. Front Panel and face pad can be installed in the front to reduce the shear loading a lot.
6. Easy and fast for installation.

Accessories:
Front Pad and Face Pad, U-Ring and Chain, Steel Mount and Connector
Pre-built Parts:Bolt, Waeher, Pre-built-in nut, Foot rod, Foot Board
